API Reference

All endpoints live under the versioned base URL and require a workspace API key as a Bearer token:

Base URL: https://api.ramain.ai/api/v1
Header:   Authorization: Bearer rmn_live_...

Examples below use a workflow with a single required input, order_number, which is the same shape the in-portal API docs generate for each of your published workflows:

Launch a run

POST /automations/{workflowId}/runs

Launches a run of a Published workflow. Returns 202 Accepted immediately; the run executes asynchronously. Requires the workflows:run scope.

Request body

curl -X POST https://api.ramain.ai/api/v1/automations/wf_audit_zoho/runs \
  -H "Authorization: Bearer rmn_live_xJ4..." \
  -H "Content-Type: application/json" \
  -d '{
    "inputs": { "order_number": "JODL-2041" },
    "metadata": { "correlation_id": "erp-58812" },
    "callback_url": "https://example.com/hooks/ramain",
    "idempotency_key": "erp-58812-attempt-1"
  }'

Response: 202 Accepted

{
  "run_id": "run_9f3ka72",
  "workflow_id": "wf_audit_zoho",
  "status": "pending",
  "created_at": "2026-07-21T10:30:00Z",
  "status_url": "https://api.ramain.ai/api/v1/runs/run_9f3ka72",
  "result_url": "https://api.ramain.ai/api/v1/runs/run_9f3ka72/result",
  "events_url": "https://api.ramain.ai/api/v1/runs/run_9f3ka72/events",
  "queue": { "position": 0 }
}

Passwords are never inputs

Saved Passwords a workflow uses are resolved inside the workspace at runtime. They never appear in the input contract and can't be passed through the API.

Get run status

GET /runs/{runId}

Returns the run envelope. Requires the runs:read scope.

{
  "run_id": "run_9f3ka72",
  "workflow_id": "wf_audit_zoho",
  "status": "running",
  "created_at": "2026-07-21T10:30:00Z",
  "status_url": "https://api.ramain.ai/api/v1/runs/run_9f3ka72",
  "result_url": "https://api.ramain.ai/api/v1/runs/run_9f3ka72/result",
  "events_url": "https://api.ramain.ai/api/v1/runs/run_9f3ka72/events"
}

When a run pauses for a person, the envelope carries a description of what's needed and where to answer:

{
  "run_id": "run_9f3ka72",
  "status": "waiting_for_human",
  "human_action": "Approve the order total before submission",
  "resume_url": "https://api.ramain.ai/api/v1/runs/run_9f3ka72/human-input"
}

Run statuses

Get run result

GET /runs/{runId}/result

Returns 202 while the run is still in progress. Once the run is terminal, it returns the structured outputs, including any files the run produced.

{
  "run_id": "run_9f3ka72",
  "status": "completed",
  "outputs": {
    "zoho_order_id": "SO-00871",
    "order_total": "1,240.00 EUR",
    "files": [
      {
        "name": "order-confirmation.pdf",
        "contentType": "application/pdf",
        "downloadUrl": "https://api.ramain.ai/api/v1/runtime-files/f_28ab41/download?token=..."
      }
    ]
  }
}

Downloading files

Each entry in outputs.files[] carries a signed downloadUrl. The link is self-authenticating, so no API key is needed on the download itself; you can hand the URL to a browser, a signed-URL-aware client, or plain curl:

# Grab the first output file from the result
RESULT=$(curl -s https://api.ramain.ai/api/v1/runs/run_9f3ka72/result \
  -H "Authorization: Bearer rmn_live_xJ4...")

URL=$(echo "$RESULT" | jq -r '.outputs.files[0].downloadUrl')
NAME=$(echo "$RESULT" | jq -r '.outputs.files[0].name')

curl -o "$NAME" "$URL"

Signed links expire, so download promptly after fetching the result rather than storing the URL long-term. If a link has expired, fetch the result again for a fresh one.

List run events

GET /runs/{runId}/events

Returns the public step events of a run as a JSON list. This is the endpoint to build progress UIs on: it shows what the run is doing without you having to poll the status envelope aggressively.

{
  "run_id": "run_9f3ka72",
  "events": [
    { "at": "2026-07-21T10:30:04Z", "type": "run.started" },
    { "at": "2026-07-21T10:30:12Z", "type": "step.completed", "step": "Look up order JODL-2041" },
    { "at": "2026-07-21T10:31:40Z", "type": "run.completed" }
  ]
}

Resume human input

POST /runs/{runId}/human-input

Resumes a run in waiting_for_human by answering on the caller's behalf. Requires the workflows:run scope. Use the resume_url from the status envelope, or build the path from the run_id.

Request body

curl -X POST https://api.ramain.ai/api/v1/runs/run_9f3ka72/human-input \
  -H "Authorization: Bearer rmn_live_xJ4..." \
  -H "Content-Type: application/json" \
  -d '{ "response": "Approved. The total of 1,240.00 EUR is correct." }'

The run picks up where it paused, with your response injected as if a teammate had answered in the portal. Poll the status afterwards as usual; the run transitions back through running on its way to a terminal state.

Webhook payload

If you passed a callback_url at launch, RamAIn POSTs to it once the run reaches a terminal state, with User-Agent: RamAIn-Workflow-API/1.0:

{
  "type": "workflow.run.completed",
  "run": {
    "run_id": "run_9f3ka72",
    "workflow_id": "wf_audit_zoho",
    "status": "completed"
  },
  "result": {
    "outputs": { "zoho_order_id": "SO-00871" }
  }
}

Verify webhooks server-side

Treat the webhook as a notification, not as truth. On receipt, fetch the run's status_url from your server with your API key and act on that response.

Example receiver

A minimal receiver that verifies the notification before acting on it:

Tab: Node.js (Express)

import express from "express";

const app = express();
app.use(express.json());

const HEADERS = { Authorization: "Bearer rmn_live_xJ4..." };

app.post("/hooks/ramain", async (req, res) => {
  // Acknowledge fast; do the work after responding.
  res.sendStatus(200);

  const runId = req.body?.run?.run_id;
  if (!runId) return;

  // Verify against the API instead of trusting the payload.
  const status = await (
    await fetch(`https://api.ramain.ai/api/v1/runs/${runId}`, { headers: HEADERS })
  ).json();

  if (status.status === "completed") {
    const result = await (
      await fetch(`https://api.ramain.ai/api/v1/runs/${runId}/result`, { headers: HEADERS })
    ).json();
    console.log("Run finished:", result.outputs);
  }
});

app.listen(3000);

Tab: Python (FastAPI)

import requests
from fastapi import BackgroundTasks, FastAPI, Request

app = FastAPI()

BASE = "https://api.ramain.ai/api/v1"
HEADERS = {"Authorization": "Bearer rmn_live_xJ4..."}


def process_run(run_id: str) -> None:
    # Verify against the API instead of trusting the payload.
    status = requests.get(f"{BASE}/runs/{run_id}", headers=HEADERS).json()
    if status["status"] == "completed":
        result = requests.get(f"{BASE}/runs/{run_id}/result", headers=HEADERS).json()
        print("Run finished:", result["outputs"])


@app.post("/hooks/ramain")
async def ramain_hook(request: Request, tasks: BackgroundTasks):
    payload = await request.json()
    run_id = payload.get("run", {}).get("run_id")
    if run_id:
        # Acknowledge fast; do the work after responding.
        tasks.add_task(process_run, run_id)
    return {"ok": True}

Retry a dead-lettered run

Runs that fail can land in a review queue. After inspecting (or fixing the underlying cause), retry them:

POST /runs/{runId}/dead-letter/retry

Errors

Keeping the contract in sync

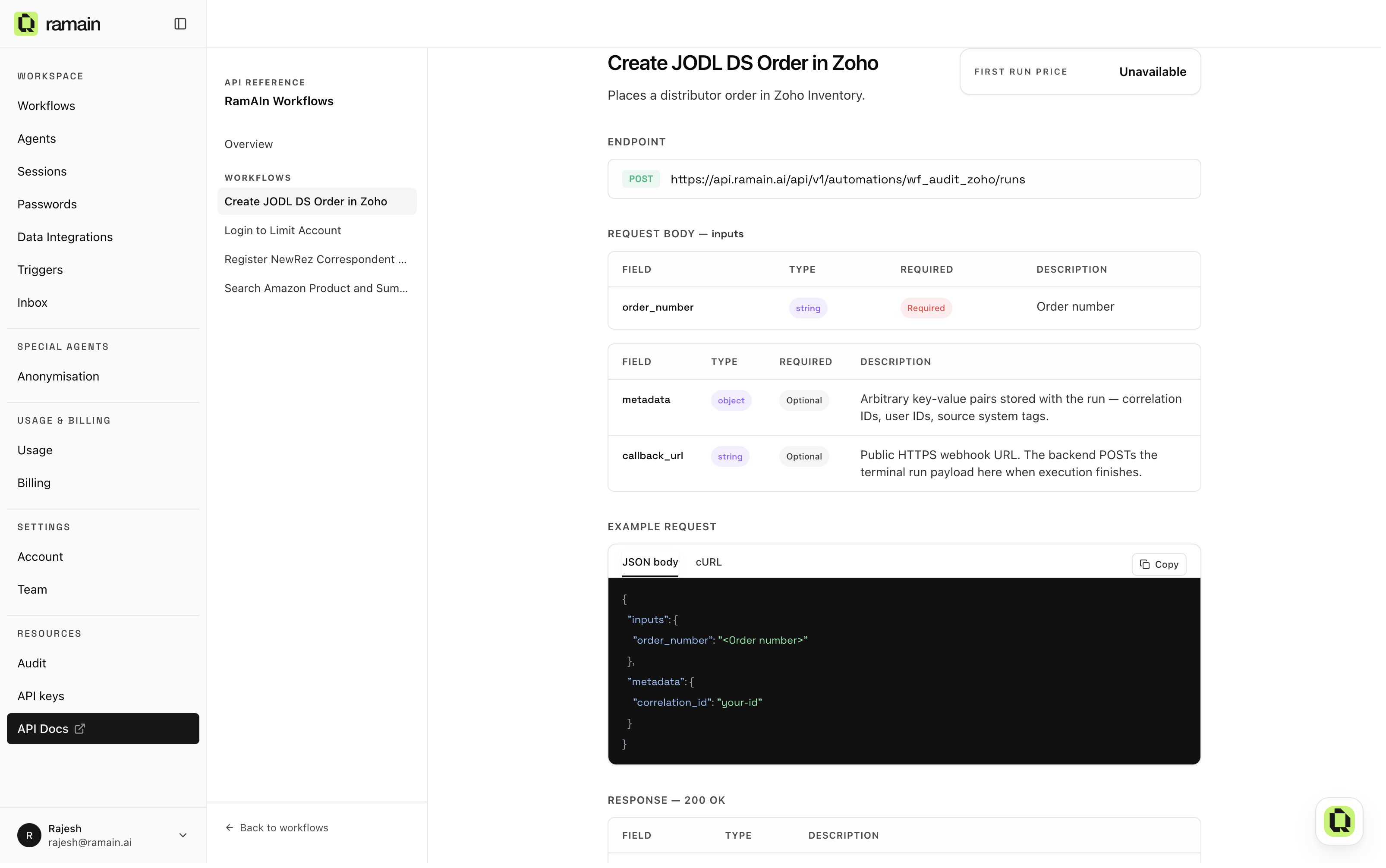

Every published workflow's API contract mirrors its Input block: add or rename an input in the editor, publish, and the endpoint's parameters update on the next publish. The in-portal API Docs page always shows the current contract with copy-ready JSON and curl snippets.
